APF

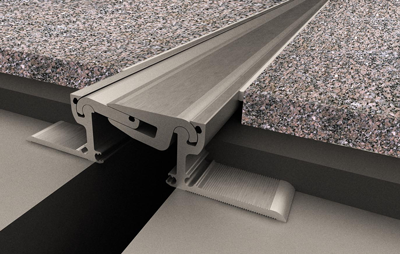

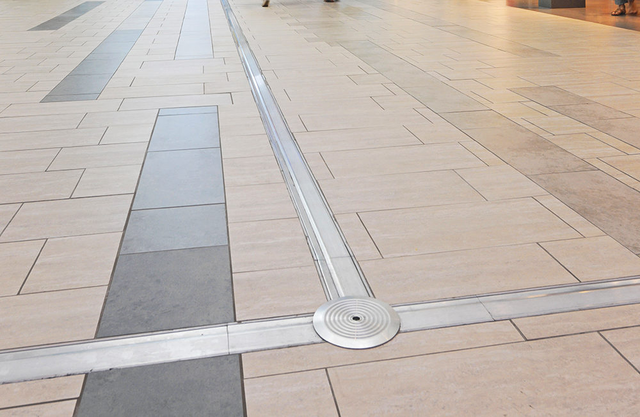

This recessed, all-metal cover is designed for interior applications with significant foot traffic, such as malls and airports. It has a unique interlocking design that allows for horizontal movement and some vertical deflection and can withstand heavy rolling loads. Different frame heights are available. Joint sizes range from 25.4mm to 101.6mm. Contact the factory for larger sizes or custom applications.
We’re here to help.
Want assistance? It’s easy to get in touch with us - just click the button below.
Many of our product solutions offer choices for customisation, and we would love to talk you through your options. Let’s start (or continue) the conversation today!
Interested in this Product?
We would love to help you! For more information and to purchase, please contact us by requesting a quote below and we will be in touch with you shortly.
We’re here to help.
Want assistance? It’s easy to get in touch with us - just click the button below.
Many of our product solutions offer choices for customisation, and we would love to talk you through your options. Let’s start (or continue) the conversation today!
Finishes
-
Mill
Expansion Joint Standard Finish
Performance Data
| Model | Joint Width | Min Opening | Max Opening | Exposed Surface | Blockout Width | Blockout Height |
|---|---|---|---|---|---|---|
| APF-100 | 1.00" (25 mm) | 0.75" (19 mm) | 1.25" (32 mm) | 1.70" (43 mm) | VARIES | VARIES |
| APF-200 | 2.00" (51 mm) | 1.63" (41 mm) | 2.38" (60 mm) | 3.30" (84 mm) | VARIES | VARIES |
| APF-300 | 3.00" (76 mm) | 2.50" (64 mm) | 3.50" (89 mm) | 4.37" (111 mm) | VARIES | VARIES |
| APF-400 | 4.00" (102 mm) | 3.25" (83 mm) | 4.75" (121 mm) | 5.28" (134 mm) | VARIES | VARIES |
| APFW-100 | 1.00" (25 mm) | 0.75" (19 mm) | 1.25" (32 mm) | 1.70" (43 mm) | VARIES | VARIES |
| APFW-200 | 2.00" (51 mm) | 1.63" (41 mm) | 2.38" (60 mm) | 3.30" (84 mm) | VARIES | VARIES |
| APFW-300 | 3.00" (76 mm) | 2.50" (64 mm) | 3.50" (89 mm) | 4.37" (111 mm) | VARIES | VARIES |
| APFW-400 | 4.00" (102 mm) | 3.25" (83 mm) | 4.75" (121 mm) | 5.28" (134 mm) | VARIES | VARIES |
